P17 Petrol Air Compressor: Belt Drive, Honda GX200, 350LPM

P17 Petrol is one of the largest-selling petrol air compressors, delivering 350 litres of free air per minute. Powered by a Genuine Honda GX200 engine, it is built for Australia’s toughest conditions and meets Australian emissions standards.

This compressor is quiet, efficient, and professional-grade, capable of running die grinders, air sanders, and ½” impact guns. The Peerless N75 full cast iron pump runs at a slow 1061 RPM, ensuring long-lasting performance. The Conrader idle control valve system (USA-made) helps save fuel by automatically engaging and disengaging according to air demand.

Every P17 Petrol unit is built and tested at Peerless’ Bendigo factory, including pressure vessel checks, fitting inspections, bolt tension verification, and pump-up times. Standard features include:

• Oil-filled stainless steel pressure gauge

• Braided Teflon exhaust hose

• Solid metal belt guard

• Solid rubber wheels

Model Variants

Twin Tank – Low center of gravity for improved stability and portability in vehicles; removable handle for compact storage.

Ute Mate – Compact roll-cage design, ideal for utility vehicles, delivering full performance in a modest package.

2" Tube Tank – Provides instant pressure recovery; frees up space on service vehicles and allows rapid access to air without downtime.

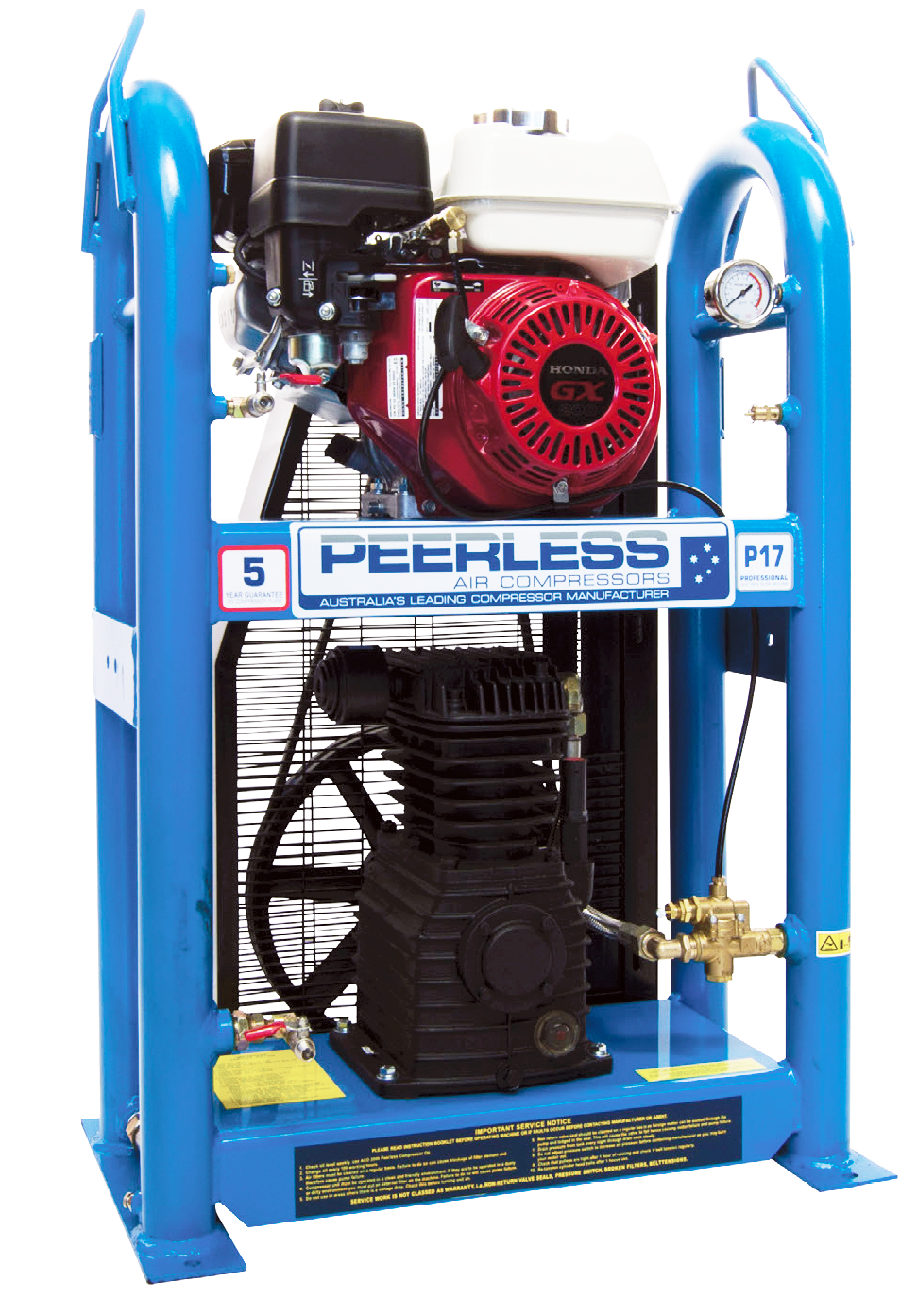

Under / Over – Space-saving design for trailers or service vehicles with rapid recovery, returning to full pressure within six seconds.

Electric start models come with battery leads (battery not included). Custom designs and alternative configurations are available.

Meet AS4637 standards, ensuring reliable performance

Usage Guidelines

⚠️ Exceeding these duty cycles may damage the compressor.
Always check site voltage before operation. Low voltage (<230V) can harm the engine. Avoid extension leads; use longer air hoses instead.

Code	Model	Pump Displacement (CFM)	Free Air Delivery (LPM)	Max PSI	Engine	Tank Capacity (L)	Pump Up Time to 100PSI	Dimensions (mm)	Weight (kg)
00128	P17P	17 CFM	350 LPM	145	Honda GX200	55	1.05 – 1.10 Min	1100L × 450W × 820H	95
00228	Twin Tank	17 CFM	350 LPM	145	Honda GX200	32	0.40 – 0.45 Min	1130L × 550W × 700H	80
00128-UO	Under / Over	17 CFM	350 LPM	145	Honda GX200	5	-	640L × 385W × 980H	95
00128-2TT	Tube Tank	17 CFM	350 LPM	145	Honda GX200	5	-	870L × 410W × 980H	70
00128-UTE	Ute Mate	17 CFM	350 LPM	145	Honda GX200	32	0.40 – 0.45 Min	570L × 1000W × 570H	110
00128-SF	Skid Foot	17 CFM	350 LPM	145	Honda GX200	55	1.05 – 1.10 Min	L × W × H	95
00128-FB	Fat Boy	17 CFM	350 LPM	145	Honda GX200	110	2.10 – 2.20 Min	L × W × H	95

Cooling Method	Pump Type	Cylinders	Pump Head Tension	Pump Oil Capacity	Pump RPM	Outlet Thread	Engine Fuel Capacity	Engine Oil Capacity
Air Cooled	N75 Side-by-Side	2	16 FT LB / 22.4 NM	1 L	1060	¼" BSP	3.1 L	600 ml (10W/30)
